Hydra Flex Inc

Switchblade™ Ace

Switchblade™ Ace

Regular price $285.00 USD
Regular price Sale price $285.00 USD
Sale Sold out
Nozzle Kit

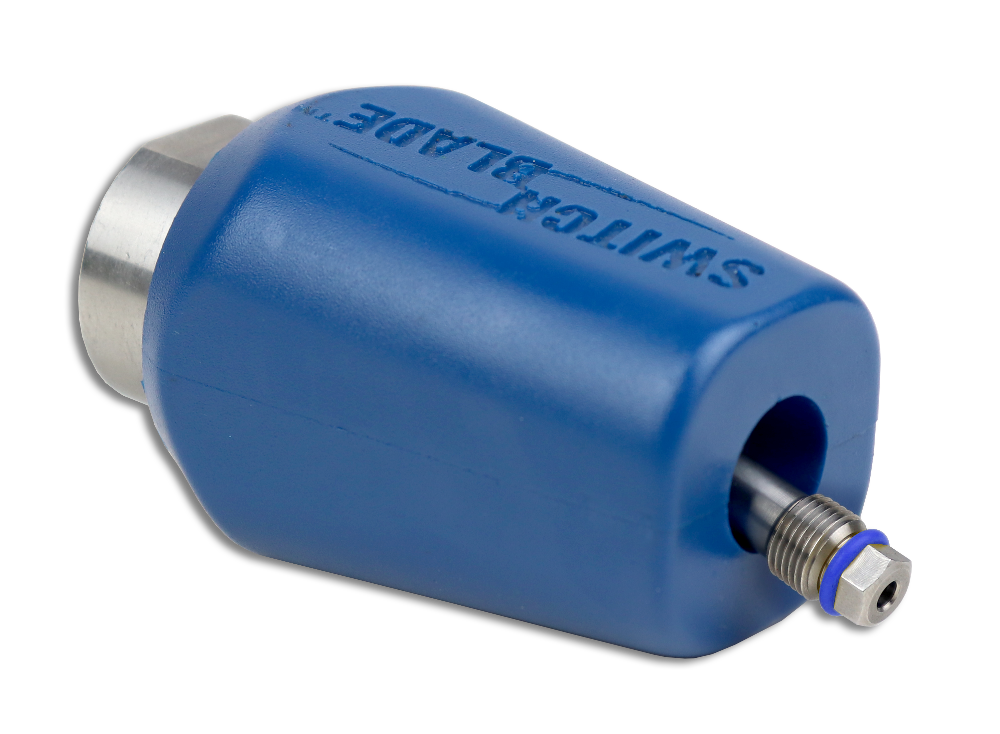

Switchblade™ Ace Static, 0-Degree Nozzle

The Switchblade Ace nozzle is designed and engineered for the rugged Hydro-Excavation industry. These heavy-duty, high-impact nozzles allow you to cut through dirt faster while using dramatically less water.

It's (1) 0-degree solid stream provides greater impingement, allowing you to cut through soil faster while using dramatically less water. The Switchblade’s long, linear flow path is ideally suited for trenching applications.

Switchblade is also available in 2 (Deuce) and 4 (Quad) 0-degree solid streams.

Maximum Inlet Pressure: 4000 PSI (276 Bar)
Maximum Water Temperature: 180° F (+82° C)
Nozzle Tip Material: Tungsten Carbide
Coating Material: Hytrel
Connection Thread: 1/8" NPT

*Stainless steel thread tape is required for pill assembly.

Nozzle Size PART#
MFR#
1.0 -
1002036-010
2.0
20022349
1002036-020
3.0
20022350
1002036-030
4.0 20022351
1002036-040
5.0
20022352
1002036-050
6.0
20022353
1002036-060
8.0 20022354 1002036-080
10.0 20022355 1002036-100
12.0 20022356 1002036-120
